Metal Single Leg Pedestal

Metal Single Leg Pedestal

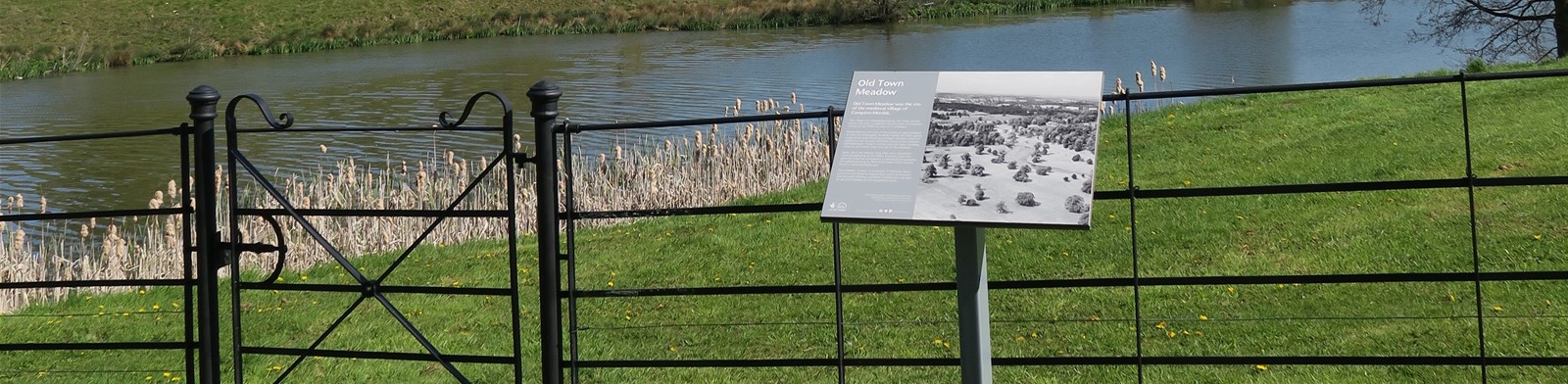

Our own design heavy duty single leg interpretation pedestal . Built to order in steel, stainless steel and aluminium with a choice of in-ground, on-ground or socket mounts and a choice of colours and finishes.

PANEL ANGLE:


  • 30º
  • 45º
  • 60º


MATERIAL:


Mild Steel – S235 or S355 grade cold formed rectangular hollow section with radius edge
  • A0 - 200 x 100 x 6mm
  • A1 - 100 x 50 x 4mm
  • A2 - 100 x 50 x 4mm
  • Other sizes available


Aluminium – 6063 grade extruded square edge rectangular hollow section
  • A0 - 200 x 100 x 6mm
  • A1 - 100 x 50 x 6mm
  • A2 - 100 x 50 x 6mm
  • Other sizes available


Stainless Steel – 304 (standard grade) or 316 (marine grade) square edge rectangular hollow section
  • A0 - 100 x 50 x 3mm
  • A1 - 80 x 40 x 3mm
  • A2 - 50 x 50 x 2mm
  • Other sizes available


FINISHES


Mild steel
  • Natural finish (left to go rusty)
  • Powder coated in a wide choice of colours
  • Galvanised
  • Galvanised and powder coated in a choice of colours


Aluminum
  • Natural finish (left to oxidise)
  • Grit blasted natural finish (left to oxidise)
  • Powder coated in a wide choice of colours


Stainless Steel
  • Natural finish
  • Grit blasted natural finish
  • Powder coated in a wide choice of colours


LEGS


  • In-ground mounting
  • On-ground mounting plates (for mounting on to decking, concrete slabs, etc.)
  • Leg sockets (so that frames can be removed



Contact us for prices...
