HDC International: NPS style single leg pedestal

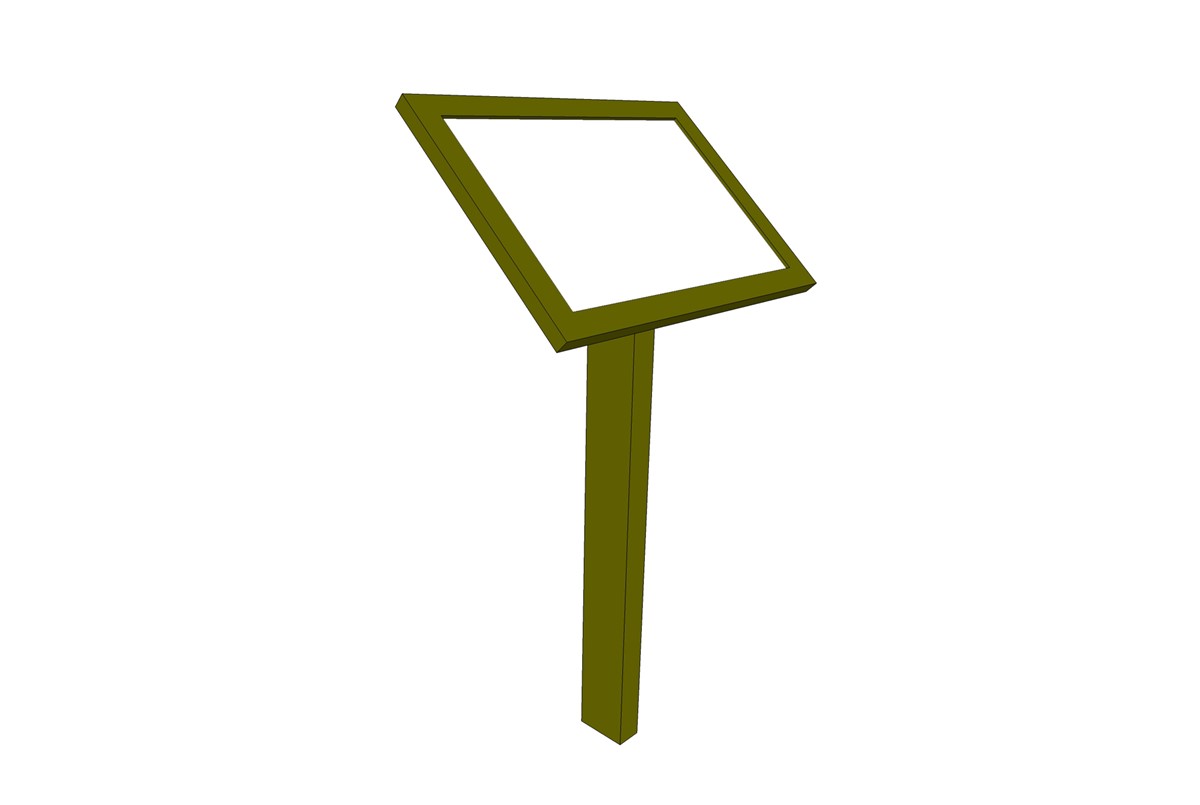

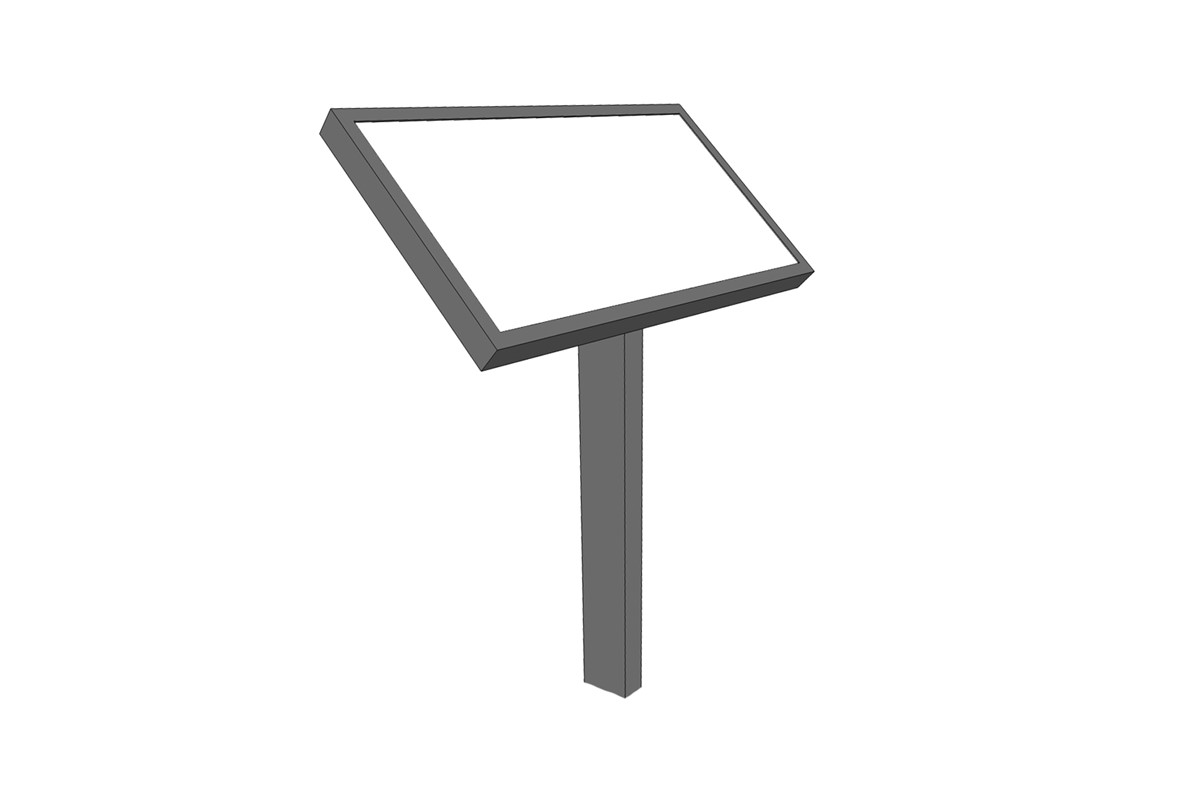

NPS Single Leg Pedestal Interpretation Panel Frame

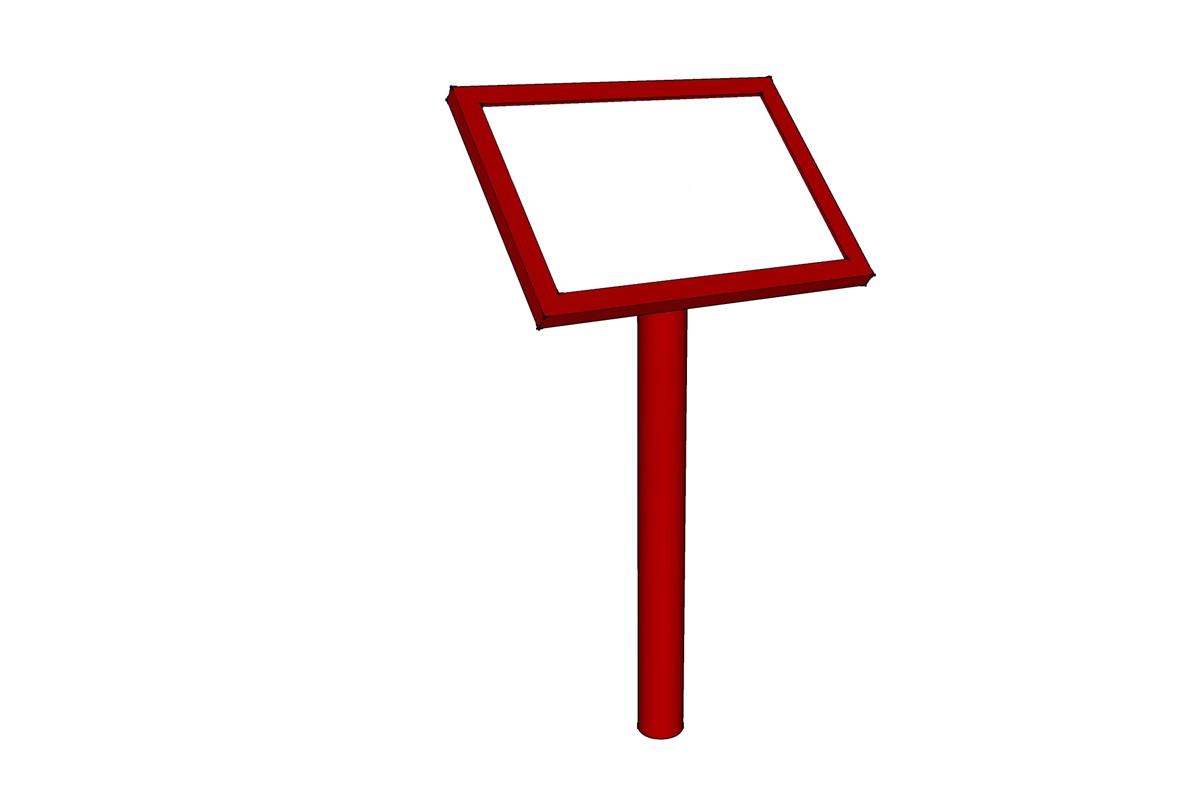

The standard specification US National Parks Service single leg interpretation pedestal frame . Built to order in steel, stainless steel and aluminium with a choice of round or square legs, in-ground, on-ground or socket mounts and a choice of colours and finishes.

PANEL ANGLE:


  • Interpretive panel angled at 30º (good for windy locations)
  • Interpretive panel angled at 45º (standard angle)
  • Interpretive panel angled at 60º (good for locations with limited space)

MATERIAL:


  • Mild Steel – S235 or S355 grade cold formed radius edged hollow section with radius edge
  • Aluminium – 6063 grade extruded square edge hollow section
  • Stainless Steel – 304 (standard grade) or 316 (marine grade) square edge hollow section

FINISHES


  • Mild steel - Natural finish (left to go rusty)
  • Mild steel - Powder coated in a wide choice of colours
  • Mild steel - Galvanised
  • Mild steel - Galvanised and powder coated in a choice of colours
  • Aluminium - Natural finish (left to oxidise)
  • Aluminium - Grit blasted natural finish (left to oxidise)
  • Aluminium - Powder coated in a wide choice of colours
  • Stainless Steel - Natural finish
  • Stainless Steel - Grit blasted natural finish

LEGS


  • In-ground mounting
  • On-ground mounting plates (for mounting on to decking, concrete slabs, etc.)
  • Leg sockets (so that frames can be removed


Contact us for prices and to discuss your requirements...
